Amegapad - Megadrive 6-Button pad adapter for Amiga

This is an Adapter that allows the use of 6-button controllers on the Amiga and provides Autofire functionality

Roadmap Things I want to add but probably won't get around to

• Add ability to configure button mapping on the fly
• Add ability to change Autofire speed on the fly
• Try to add support for CD32 Controller protocol, this will require a new PCB revision

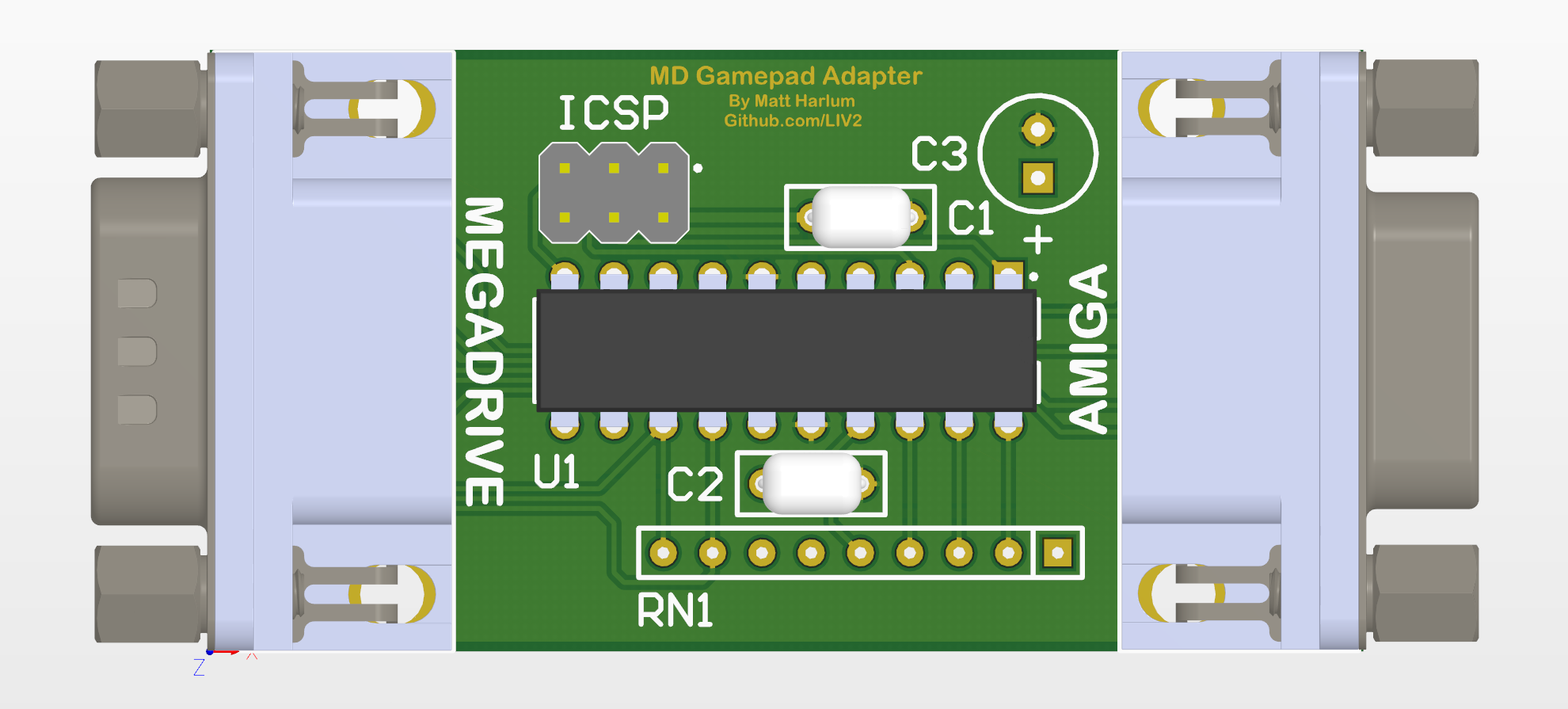

Bill of materials

Component	Location	QTY	Link
Attiny861a	U1	1	Mouser
DSUB9 Male right-angle	J1	1	Mouser
DSUB9 Female right-angle	J2	1	Mouser
0.1uF Ceramic Capaictor	C1,C2	2	Mouser
100uF Electrolytic Capacitor	C3	1	Mouser
