README.md

A4092

A modern successor to the A4091.

  • TSSOP parts for smaller footprint
  • Flash instead of EPROM
  • CPLD instead of GALs
  • Autoconfig moved into CPLD

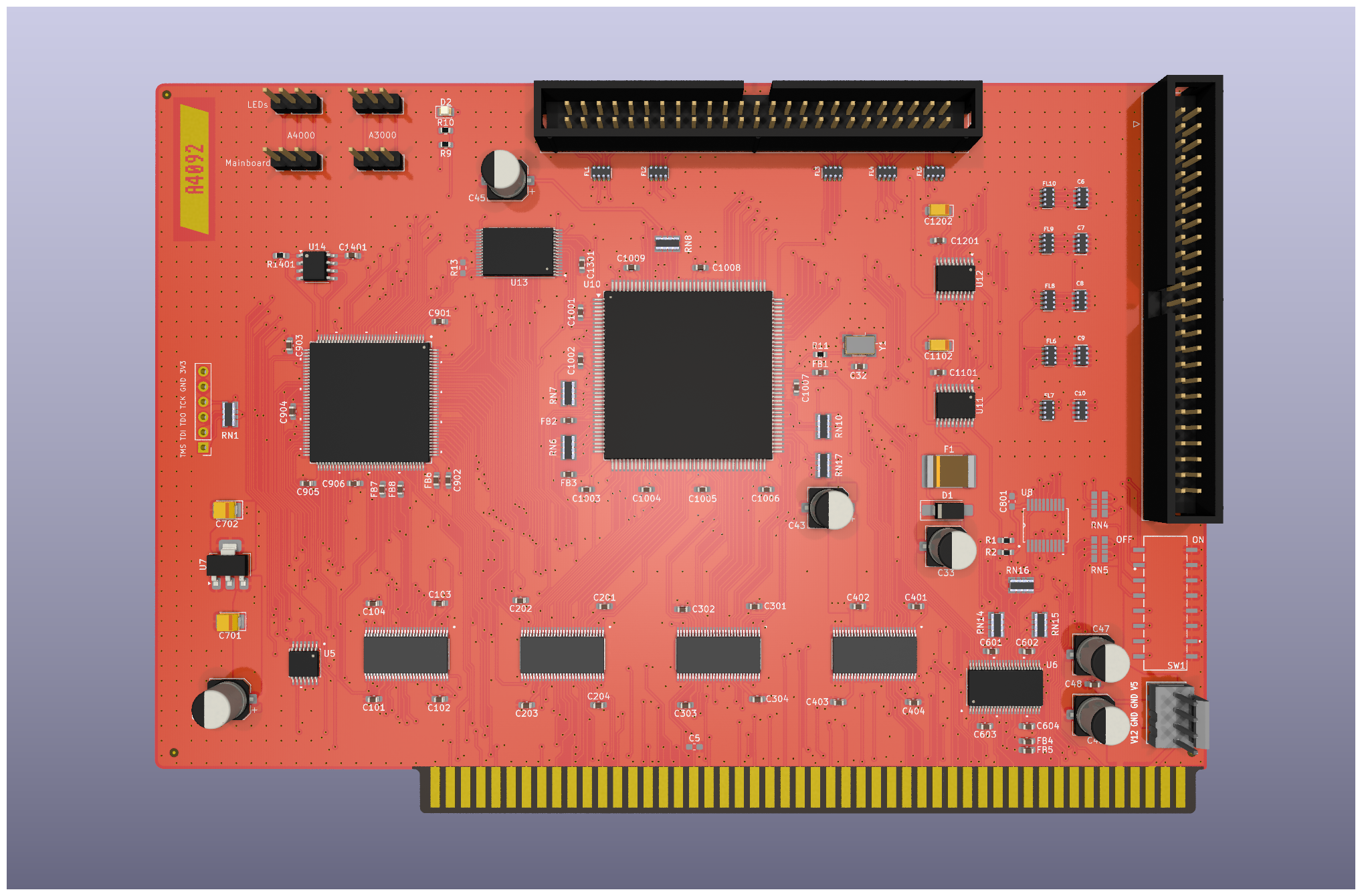

PCB
