Floppy Disk Controller for 65C02 system

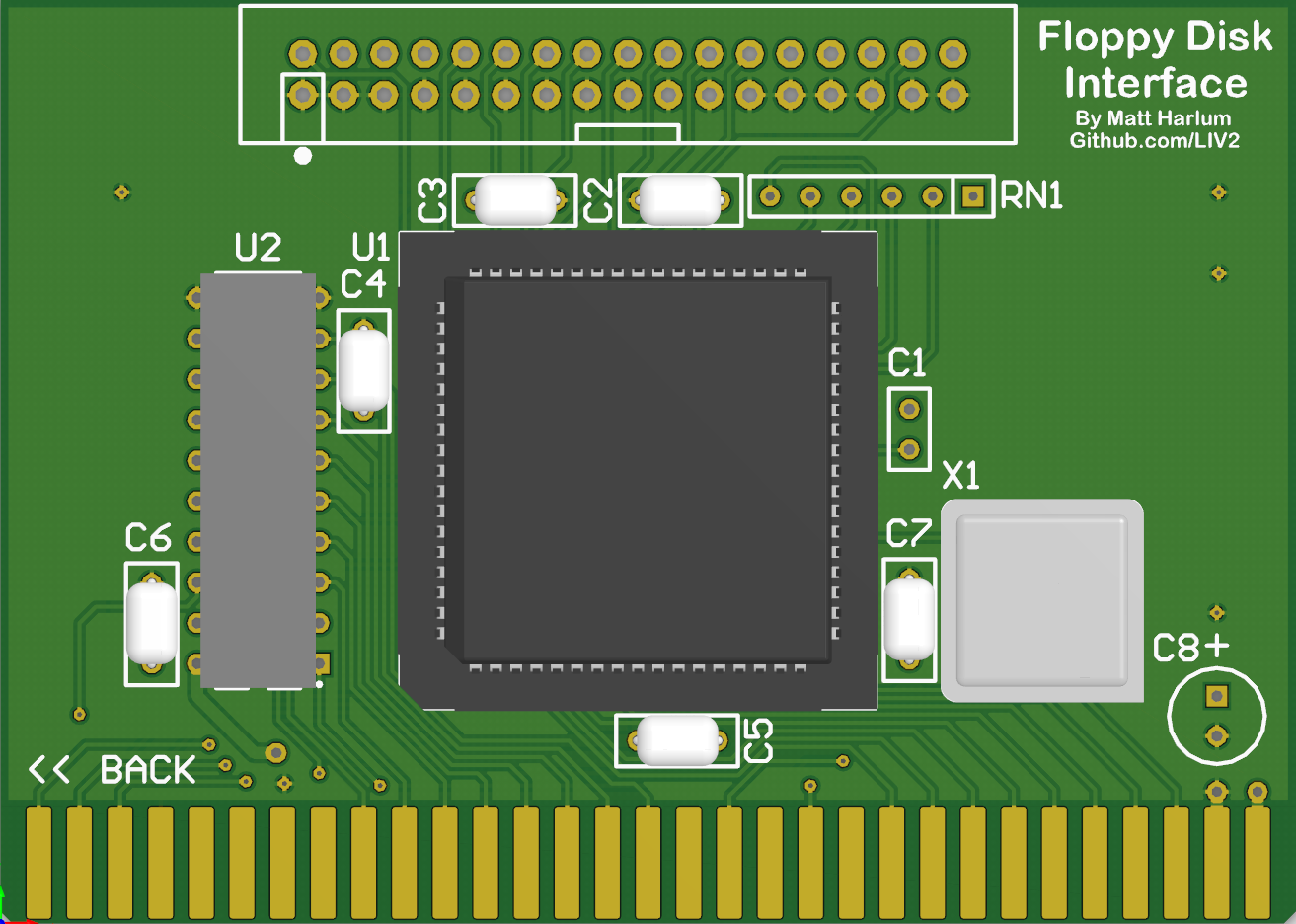

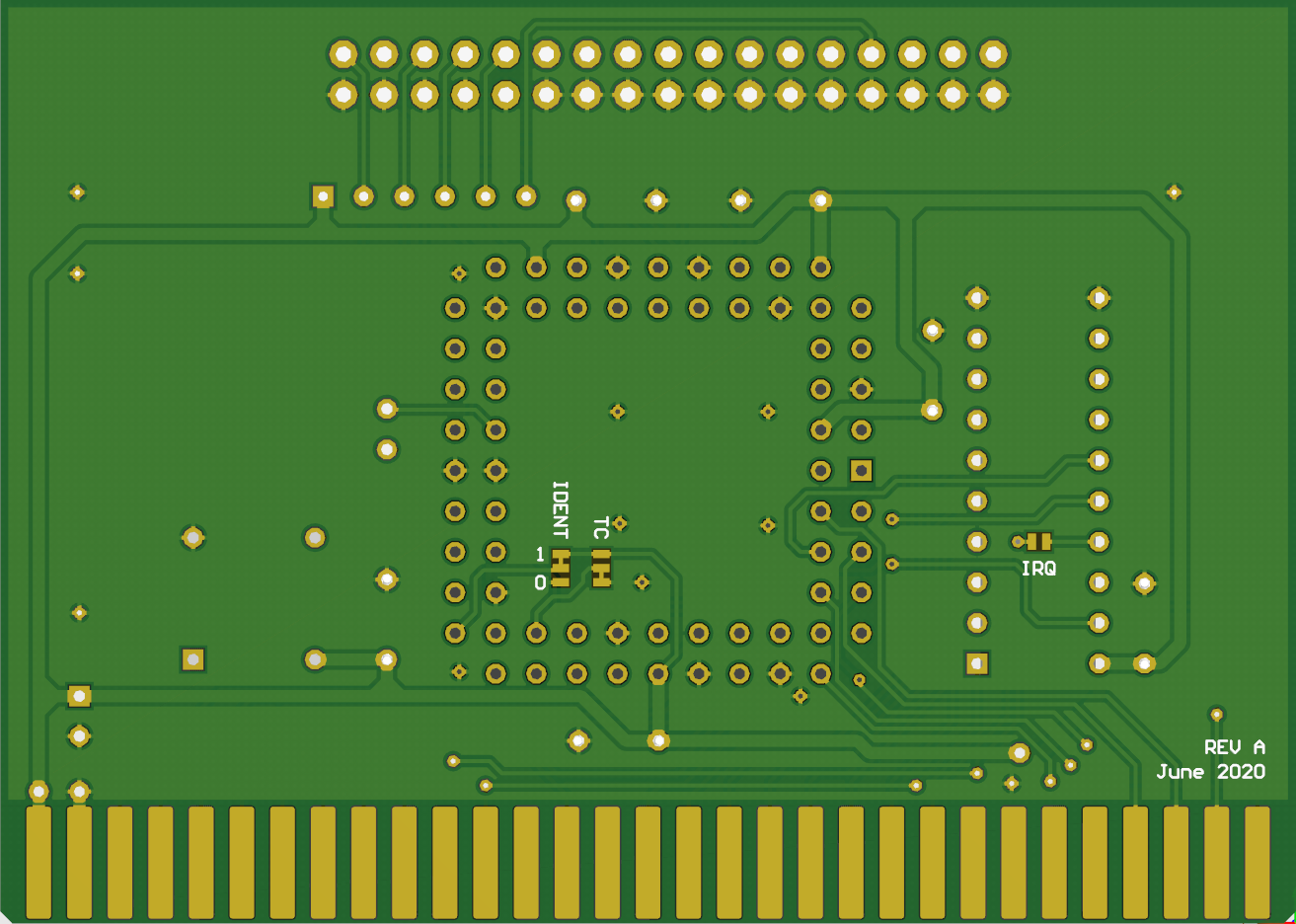

This is a floppy disk controller board for my homebrew 65C02 based system

Make sure to program the ATF16V8 with the .JED file contained within the PLD folder before soldering to the board

Bill of materials

Component	Designator	QTY	Link
82077AA or PC8477B	U1	1	eBay
ATF16V8 PLD	U2	1	Mouser
PLCC-68 Socket	U1	1	Mouser
20-pin DIP socket	U2	1	Mouser
40-Pin IDC Header	CON1	1	Mouser
4.7nF Ceramic Capacitor (Not needed for PC8477)	C1	1	Mouser
0.1uF Ceramic Capaictor	C2-7	6	Mouser
100uF Electrolytic Capacitor	C8	1	Mouser
Resistor network - Bussed, 1K 6 pin	RN1	1	Mouser
24MHz Can Oscillator	X1	1	Mouser
