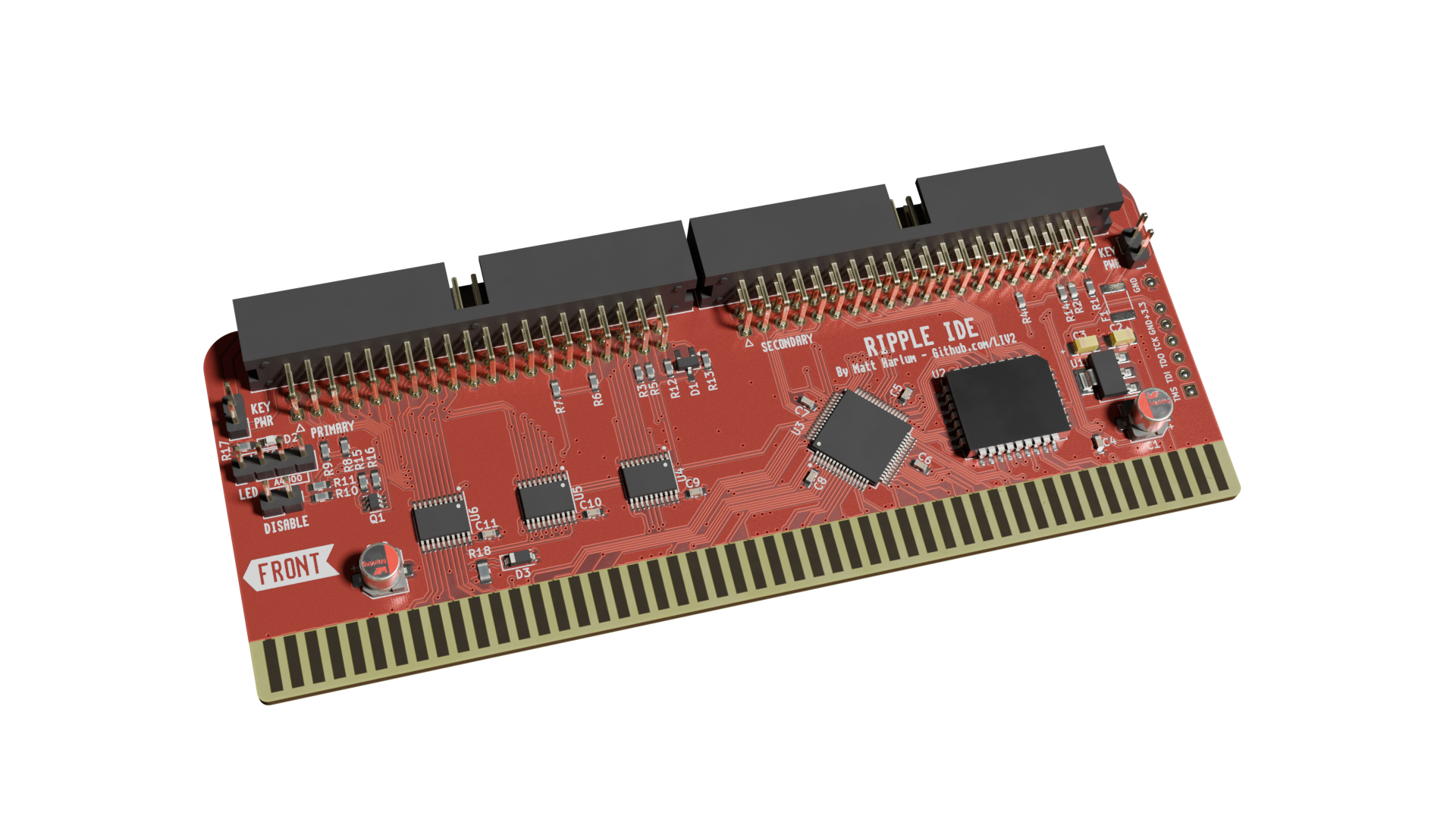

RIPPLE IDE

Zorro 2 IDE Interface for Amiga 2000/3000/4000

Table of contents

1. Status
2. Features
3. Jumpers
4. Ordering PCBs
5. Programming
6. Parts list & Links
7. Revision history
8. Special Thanks and Shoutouts
9. License

Status

Tested and working.

Features

• Autoboot
• ROM can be updated simply by booting the update disk
• Works with Kickstart 1.3 and up
• Supports up to 2TB drives
• Supports ATAPI Devices (CD/DVD-ROM, Zip disk etc)
• Boot from ZIP/LS-120 etc
• Boot from CD-ROM
• SCSI Direct, NSD, TD64 support
• Uses lide.device

For more information on these features please see the lide.device readme

Jumpers

Jumper	Function
DISABLE	Disables the IDE interface
LED	The LED header has two positions: A2000 and A4000 Plug the HDD LED connector into the one relevant for your machine
KEY PWR	Closing this jumper enables 5V power on pin 20 for CompactFlash/IDE DOM modules

Ordering PCBs

You can find the latest Gerbers attached to the latest Release

I recommend ordering from JLCPCB as this board was designed within their 2-layer specifications

BOM and Placement files for JLCPCBs assembly service are provided and can be found inside the Gerbers folder and the Gerbers.zip file found under Releases

Recommended options when ordering:

• Thickness: 1.6mm
• Surface Finish: ENIG-RoHS
• Gold Fingers: Yes
• 45°finger chamfered: Yes

Programming

To program the Flash, simply boot the latest lide-update.adf boot disk

The CPLD can be programmed using a Raspberry Pi as described by LinuxJedi

Parts list & links

Rev A4

• HTML BOM
• Interactive HTML BOM

Rev A3

• HTML BOM
• Interactive HTML BOM

Rev A2 & A1

• BOM
• Interactive HTML BOM

Revision history

• A4 - Change flash footprint from TSOP to PLCC because the TSOP version is no longer manufactured.
• A3 - Add protection for reverse installation
• A2 - Add bank selection, support loading CDFS from flash
• A1 - Initial release

Special Thanks and Shoutouts

Thanks to:

• GadgetUK164, Screemo, Sparx, Mafitzee, Pillock for Beta testing the board
• Stefan Reinauer and Chris Hooper for creating the Open-Source A4091 driver which was the inspiration to create lide.device used by RIPPLE

License

RIPPLE IDE is covered by a GPL 2.0 Only license
