README.md

RIPPLE IDE

Zorro 2 IDE Interface for Amiga 2000/3000/4000

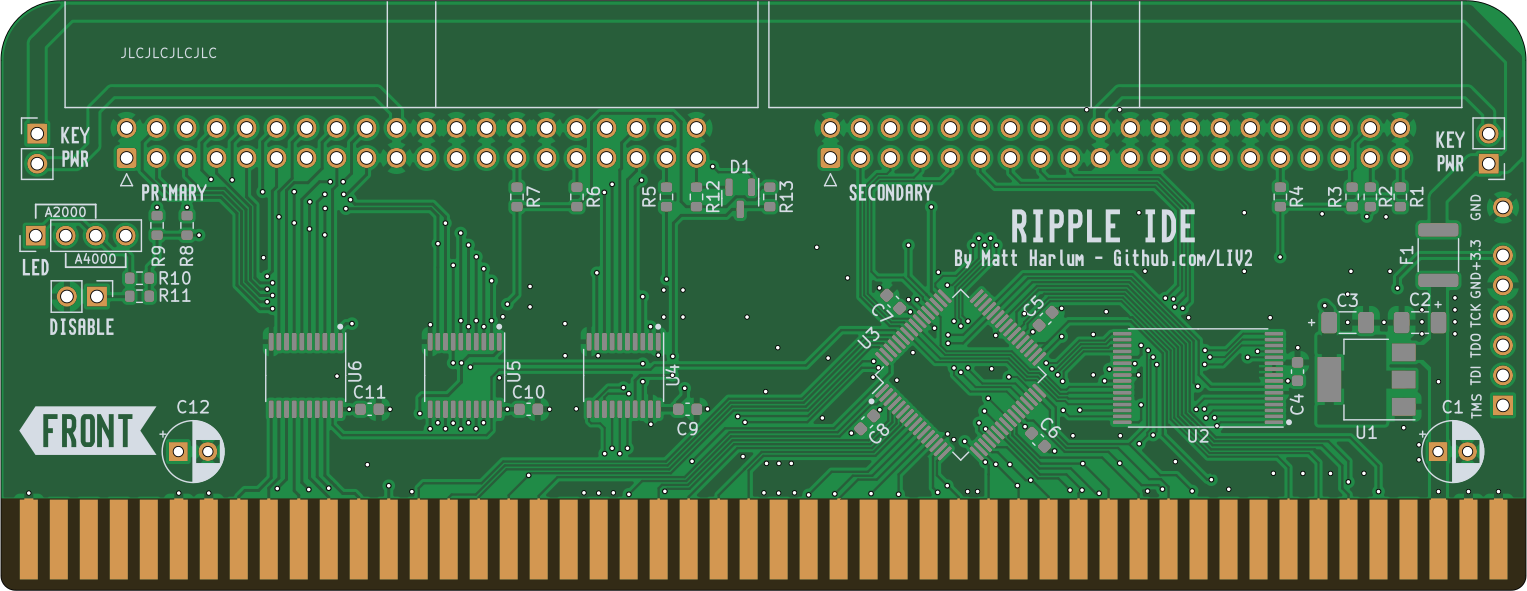

PCB

Table of contents

  1. Status
  2. Features
  3. Ordering PCBs
  4. Special Thanks and Shoutouts
  5. License

Status

Tested and working.

Features

  • Autoboot
  • Works with Kickstart 1.3 and up
  • Supports up to 127GB drives
  • Supports ATAPI Devices (CD/DVD-ROM, Zip disk etc)
  • Boot from ZIP/LS-120 etc
  • SCSI Direct, NSD, TD64 support
  • Uses lide.device

Ordering PCBs

I recommend ordering from JLCPCB as this board was designed within their 2-layer specifications
Recommended options when ordering:

  • Thickness: 1.6mm
  • Surface Finish: ENIG-RoHS
  • Gold Fingers: Yes
  • 45°finger chamfered: Yes

Special Thanks and Shoutouts

License

RIPPLE IDE is covered by a GPL 2.0 Only license
License: GPL v2
