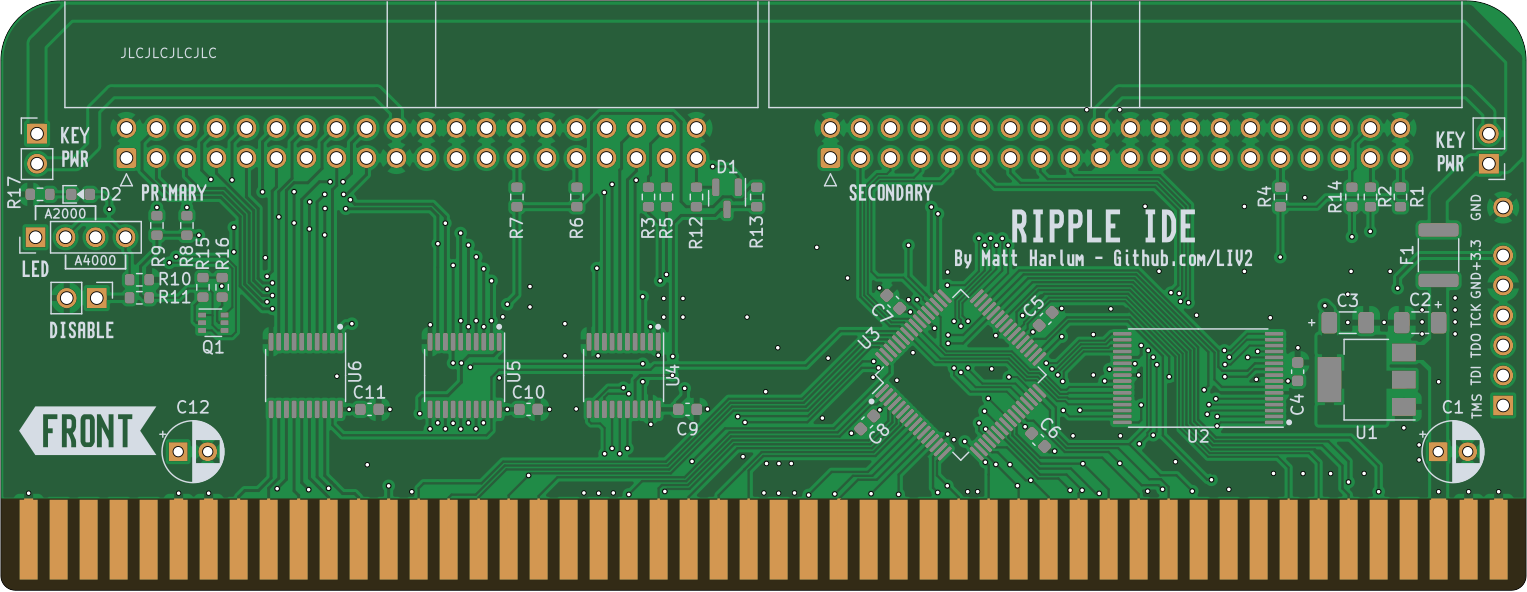

RIPPLE IDE

Zorro 2 IDE Interface for Amiga 2000/3000/4000

Table of contents

1. Status
2. Features
3. Ordering PCBs
4. Special Thanks and Shoutouts
5. License

Status

Tested and working.

Features

• Autoboot
• Works with Kickstart 1.3 and up
• Supports up to 127GB drives
• Supports ATAPI Devices (CD/DVD-ROM, Zip disk etc)
• Boot from ZIP/LS-120 etc
• SCSI Direct, NSD, TD64 support
• Uses lide.device

Ordering PCBs

I recommend ordering from JLCPCB as this board was designed within their 2-layer specifications
Recommended options when ordering:

• Thickness: 1.6mm
• Surface Finish: ENIG-RoHS
• Gold Fingers: Yes
• 45°finger chamfered: Yes

Special Thanks and Shoutouts

License

RIPPLE IDE is covered by a GPL 2.0 Only license
