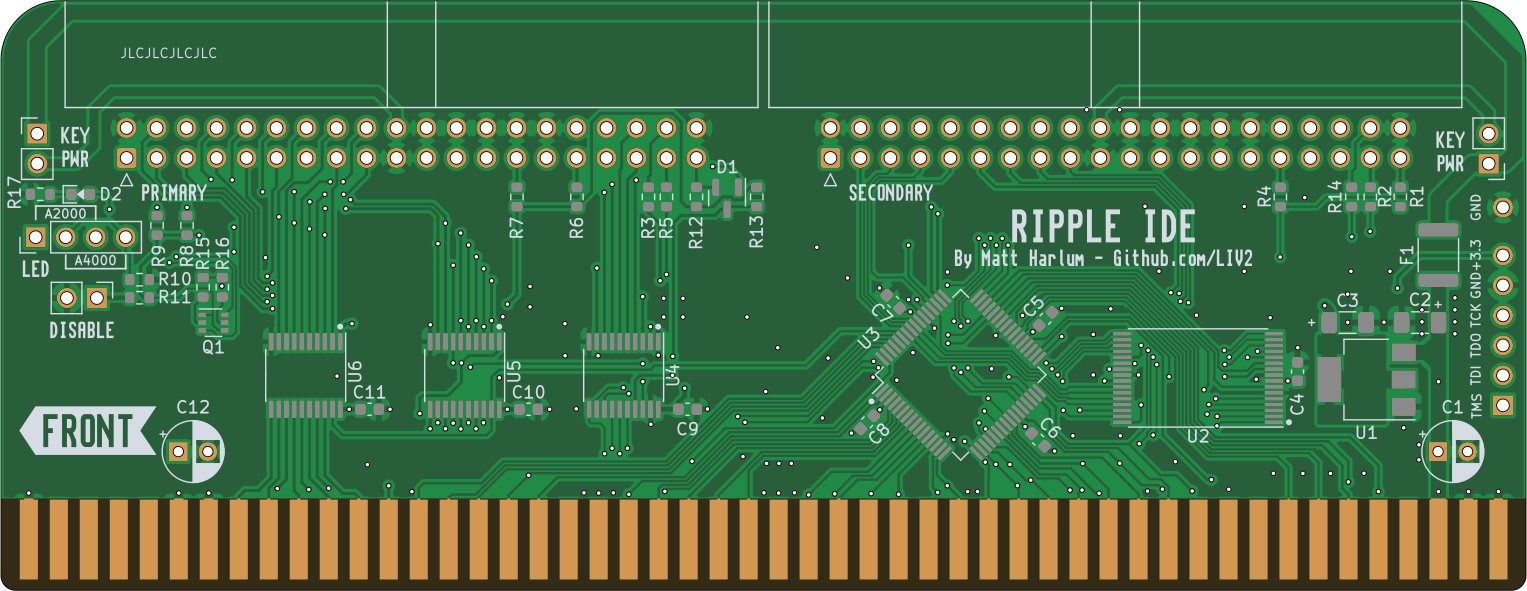

RIPPLE IDE

Zorro 2 IDE Interface for Amiga 2000/3000/4000

Table of contents

1. Status
2. Features
3. Ordering PCBs
4. Bill of Materials
5. Special Thanks and Shoutouts
6. License

Status

Tested and working.

Features

• Autoboot
• Works with Kickstart 1.3 and up
• Supports up to 127GB drives
• Supports ATAPI Devices (CD/DVD-ROM, Zip disk etc)
• Boot from ZIP/LS-120 etc
• SCSI Direct, NSD, TD64 support
• Uses lide.device

Ordering PCBs

I recommend ordering from JLCPCB as this board was designed within their 2-layer specifications
Recommended options when ordering:

• Thickness: 1.6mm
• Surface Finish: ENIG-RoHS
• Gold Fingers: Yes
• 45°finger chamfered: Yes

Bill of Materials

References	Qty	Value	Footprint	Link
C1,C12	2	47uF 16V	CP_Radial_D5.0mm_P2.50mm	Mouser
C3,C2	2	10uF Tantalum	1206	Mouser
C9,C4,C5,C7,C11,C8,C6,C10	8	0.1uF Ceramic	0603	Mouser
D1	1	BAT54A	SOT-23	Mouser
D2	1	SMD LED	0603	Mouser
F1	1	2A Polyfuse	1812	Mouser
J1	1	JTAG Header	1x06 2.54mm Pin Header
J4,J3	2	IDE Cennector, Right-angle	2x20 2.54mm Right-angle IDC	Mouser
J5	1	Disable Jumper	1x02 2.54mm Pin Header
J6	1	LED Header	1x04 2.54mm Pin Header
J7,J2	2	KEY_PWR	1x02 2.54mm Pin Header
Q1	1	BC857BS	SOT-363	Mouser
R10	1	150 Ohm	0603	Mouser
R12,R1,R8,R13,R11,R9	6	10K Ohm	0603	Mouser
R14,R5,R2,R3	4	68 Ohm	0603	Mouser
R17	1	330 Ohm	0603	Mouser
R6,R4,R15,R16,R7	5	1K Ohm	0603	Mouser
U1	1	LM1117-3.3	SOT-223-3	Mouser
U2	1	SST39SF010	TSOP-32	Mouser
U3	1	XC9572XL-VQ64	VQFP-64	Mouser
U6,U5,U4	3	74HCT245	TSSOP-20	Mouser

Special Thanks and Shoutouts

Thanks to:

• GadgetUK164, Screemo, Sparx, Mafitzee, Pillock for Beta testing the board
• Stefan Reinauer and Chris Hooper for creating the Open-Source A4091 driver which was the inspiration to create lide.device used by RIPPLE

License

RIPPLE IDE is covered by a GPL 2.0 Only license
